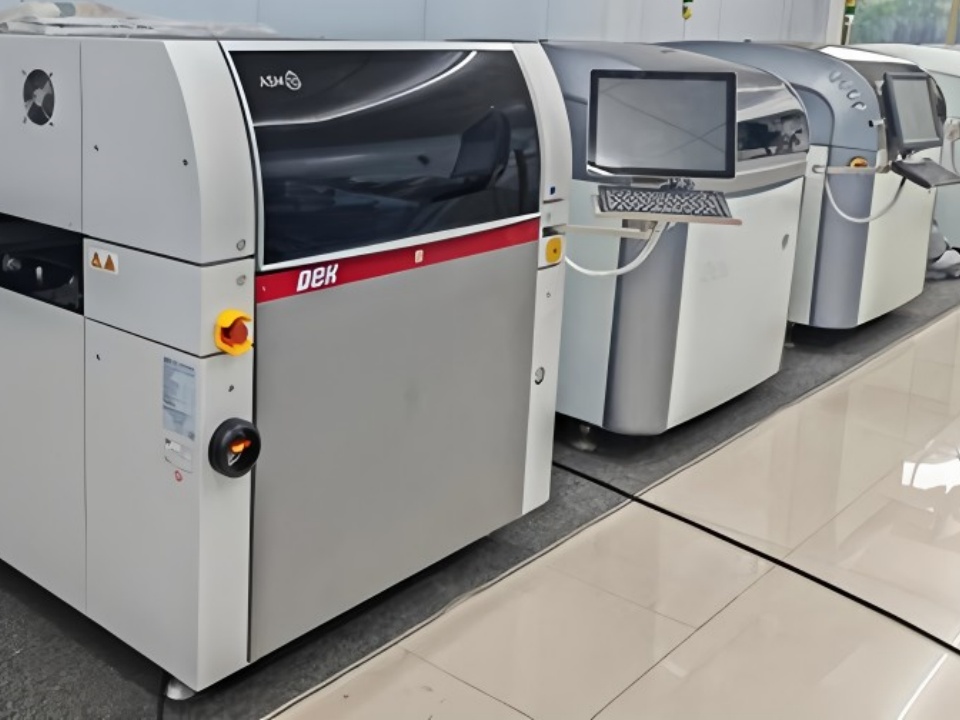

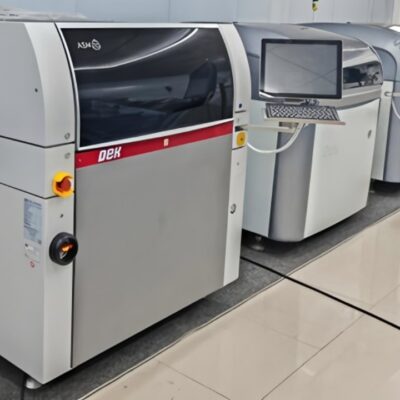

Overview

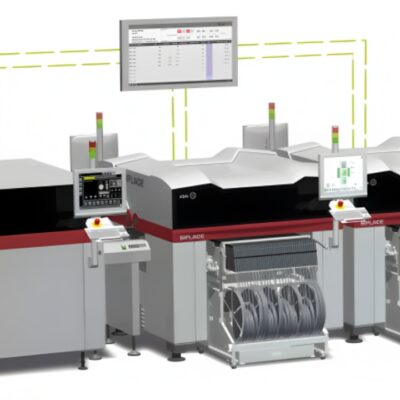

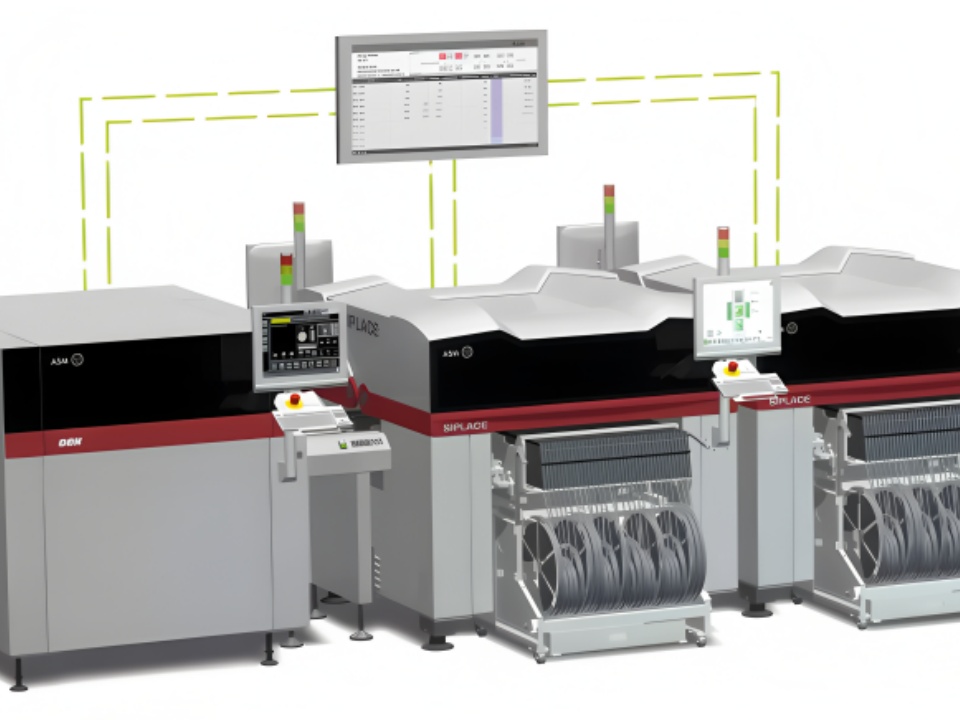

The DEK TQ is a next-generation stencil printer built for precision, speed, and reliability. With linear drives, NuMotion control, 5s cycle time, and 8h operator-free runs, it ensures stable printing for 0201 components. Smart factory interfaces provide seamless connectivity.
Datasheet
| Category | Specification |
|---|---|
| Machine Type | DEK TQ |
| Alignment Capability | > 2.0 Cmk @ ±12.5 µm (±6 sigma) |
| Wet Print Capability | > 2.0 Cpk @ ±17.5 µm (±6 sigma) |
| Core Cycle Time | 5 seconds |
| Maximum Print Area | 400 mm (X) × 400 mm (Y) (single-stage mode) |
| Machine Control | NuMotion Control System |
| Camera Positioning | Linear motors and high-precision encoders |
| Squeegee Pressure | Software-controlled, motorised with closed-loop feedback |
| Stencil Positioning | Automatic loading with squeegee drip tray |
| Substrate Size (Min.) | 50 mm (X) × 40.5 mm (Y) |
| Substrate Size (Max.) | – 250 mm (X) × 400 mm (Y) (3-stage mode) – 400 mm (X) × 400 mm (Y) (single-stage mode) – 400 mm (X) × 400 mm (Y) (3-stage with optional transport extensions) |
| Dimensions | 1,300 mm (L) × 1,000 mm (W) × 1,600 mm (H) |
