| Parameter | Specification |
|---|---|
| Max. Cutting Length | 380mm |
| Board Thickness Range | 0.4mm – 4.0mm |
| Blade Diameter | φ55mm (Typically Carbide) |
| Spindle Speed | 10,000 – 30,000 RPM (Variable) |
| Positioning Accuracy | ±0.1mm |
| Cutting Speed | 10 – 100 mm/s (Programmable) |
| Blade Life Expectancy | ~40,000 cuts (Varies with material) |
| Drive System | High-precision servo motor & ball screw |
| Programming Method | Teach-in programming, file import (DXF, Gerber) |
| Safety Features | Emergency stop, protective safety cover, two-hand operation |
| Air Pressure Requirement | 0.6 – 0.8 MPa |
| Power Supply | AC 220V / 380V, 50/60Hz |
| Machine Dimensions (LxWxH) | ~800 x 700 x 550 mm (Approx.) |
| Net Weight | ~120 kg (Approx.) |

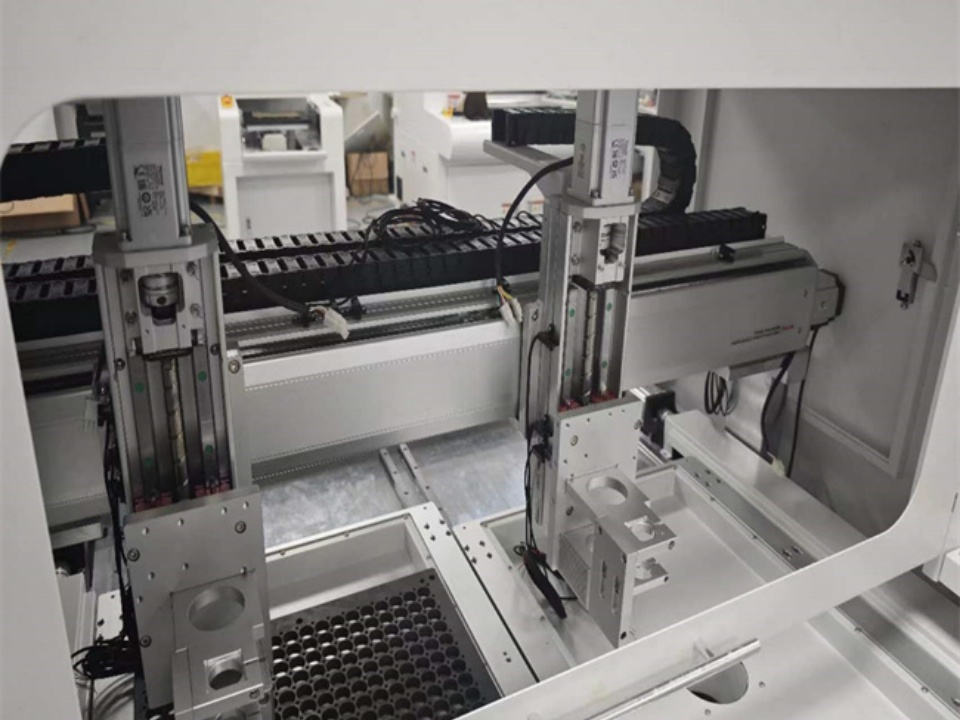

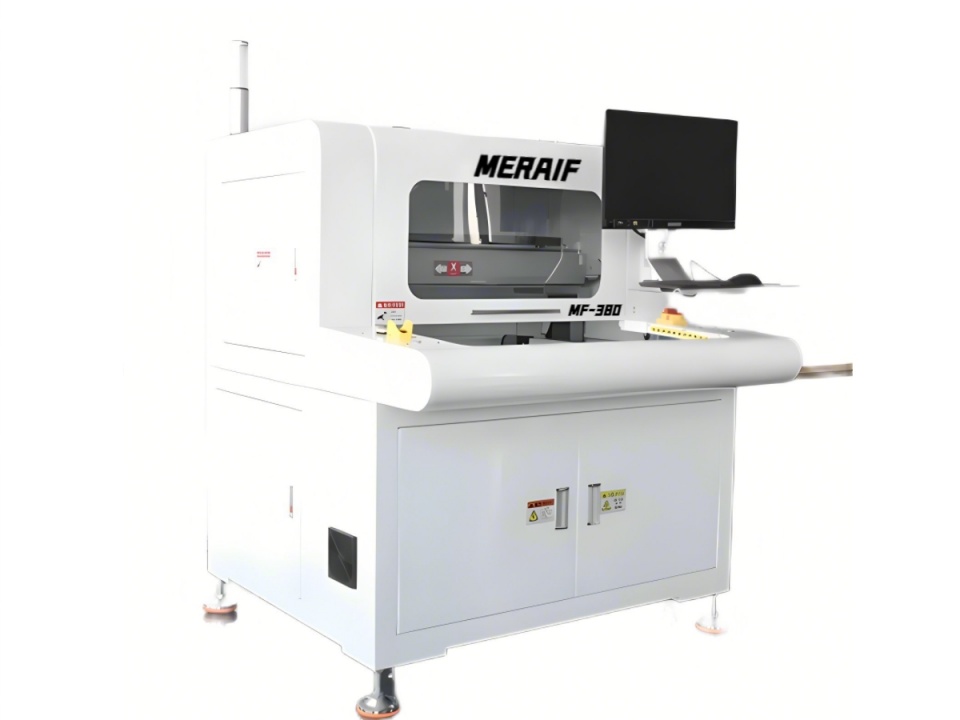

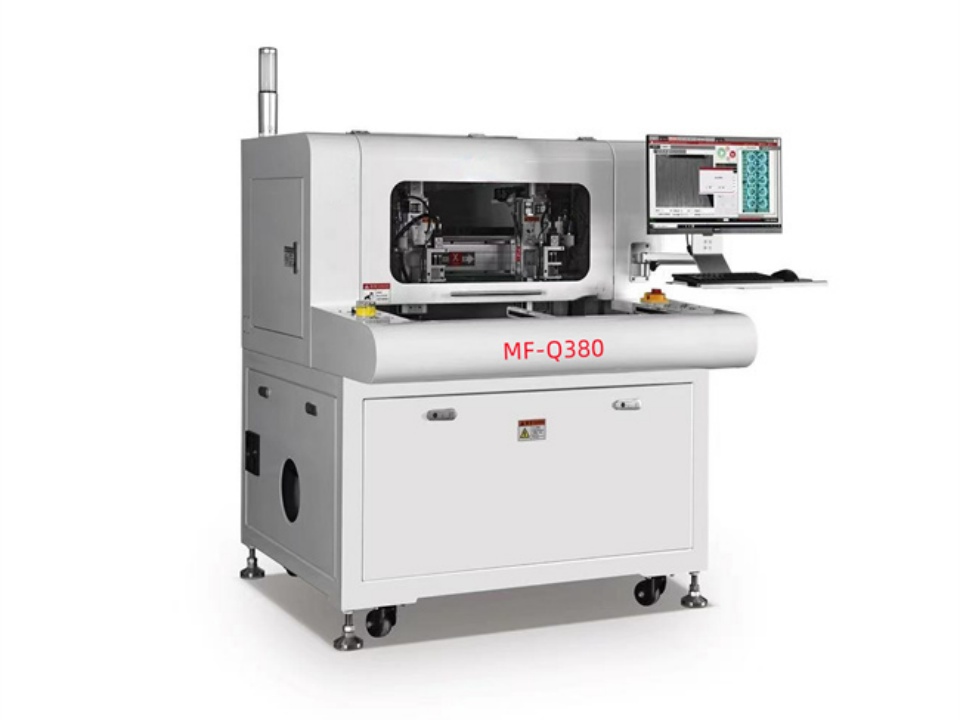

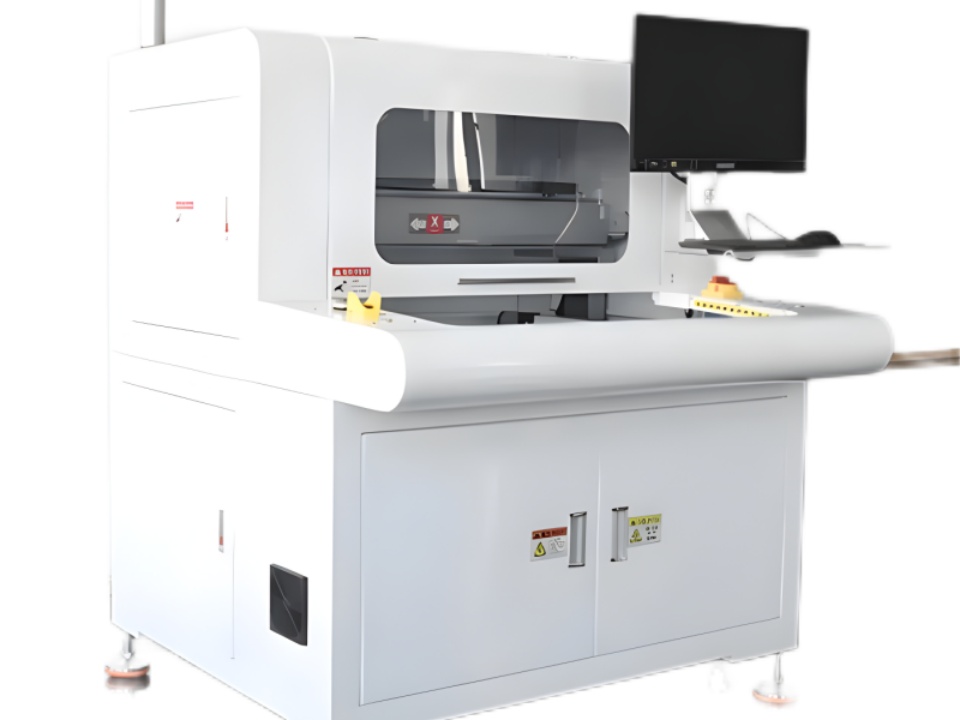

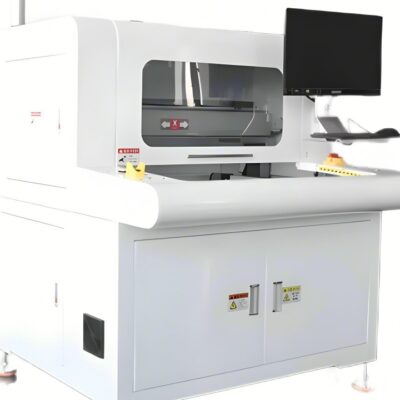

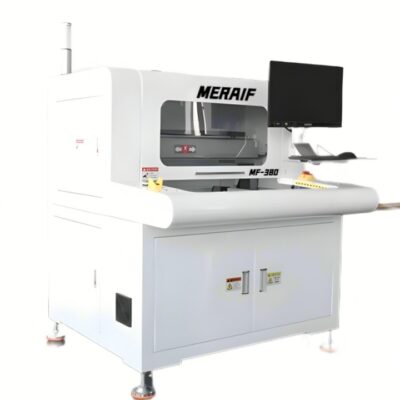

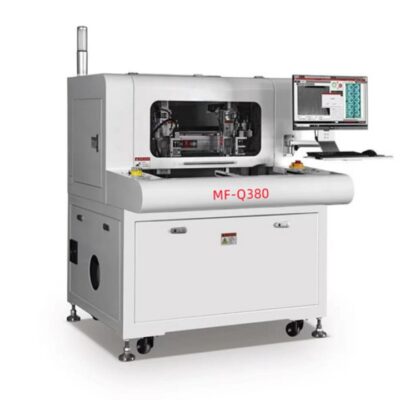

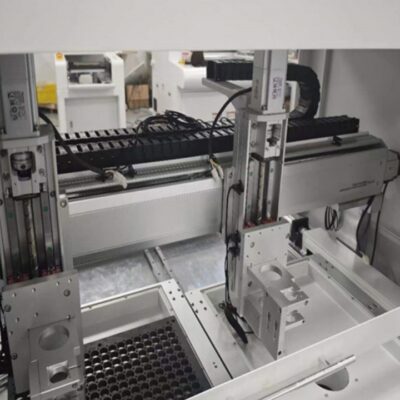

MF-Q380 PCB Depaneling and Cutting Machine Distributor
We distribute the MF-Q380 PCB depaneling machine. This robust cutter uses a high-speed spindle and carbide blade for smooth, stress-free separation of assembled PCBs from panels, protecting sensitive components and ensuring clean, burr-free edges.
