| Parameter Category | General Specification & Description |
|---|---|
| Positioning Accuracy | ±0.01mm – ±0.05mm (typical) |
| Repeatability | ±0.01mm (typical) |
| Axes of Motion | 4 to 6 axes (X, Y, Z, R) |
| Soldering Head | Thermo-driven or cartridge heater, various tip options |
| Temperature Control | Closed-loop, adjustable up to 500°C (±1°C stability) |
| Solder Wire Feed | Programmable motorized feeder (optional) |
| Flux Application | Integrated jet fluxer or dip fluxing (optional) |

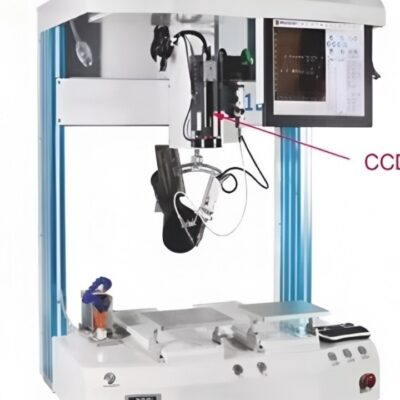

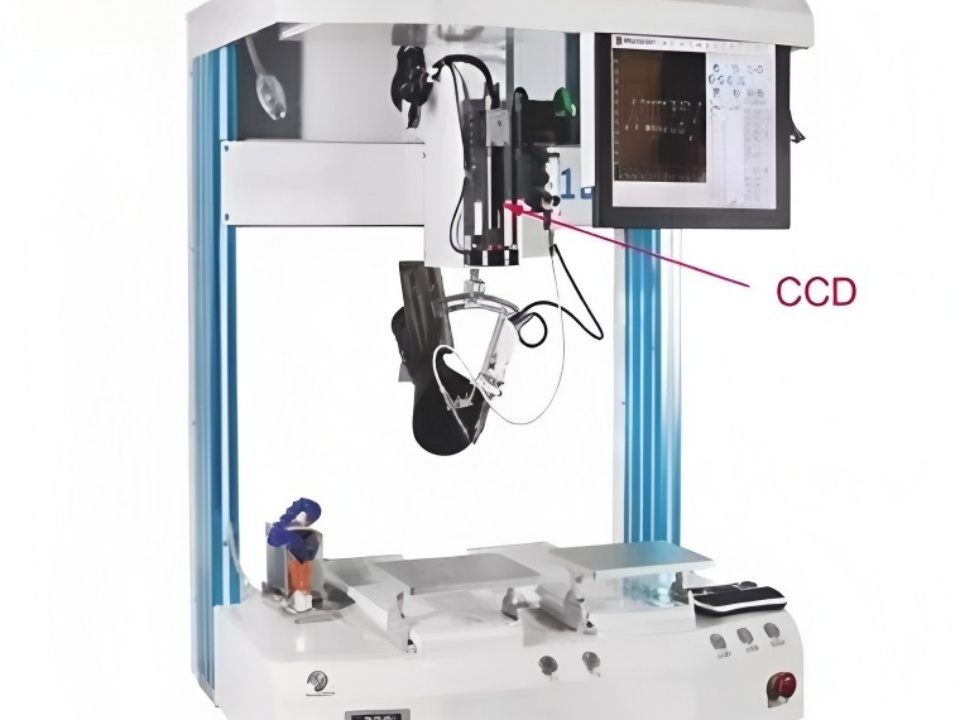

| Vision System | High-resolution camera for alignment and inspection (optional) |
| Programming Method | Teach pendant, offline software, CAD import |
| Supported Soldering | Lead-free, leaded, and specialty solders |
| Applications | SMT rework, through-hole, connectors, wire tacking |
| Safety Features | Emergency stop, collision detection, fume extraction port |
| Power Requirements | 110V/220V AC, Single Phase |
| Air Supply | Clean, dry air at 0.5 – 0.7 MPa (if applicable) |
| Communication | Ethernet, RS-232, SMEMA (for line integration) |

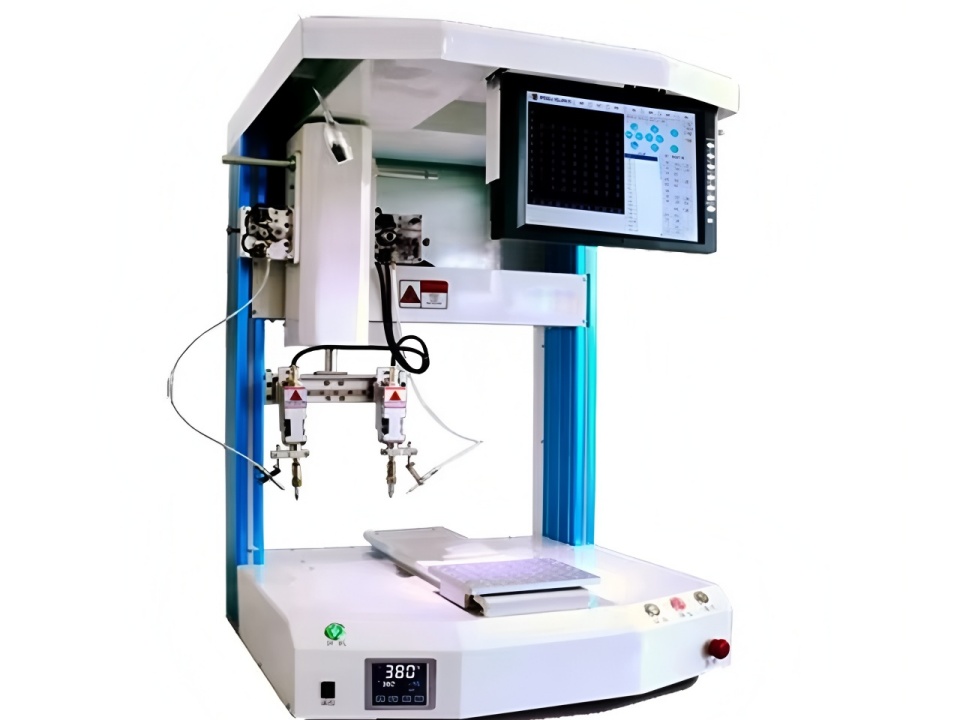

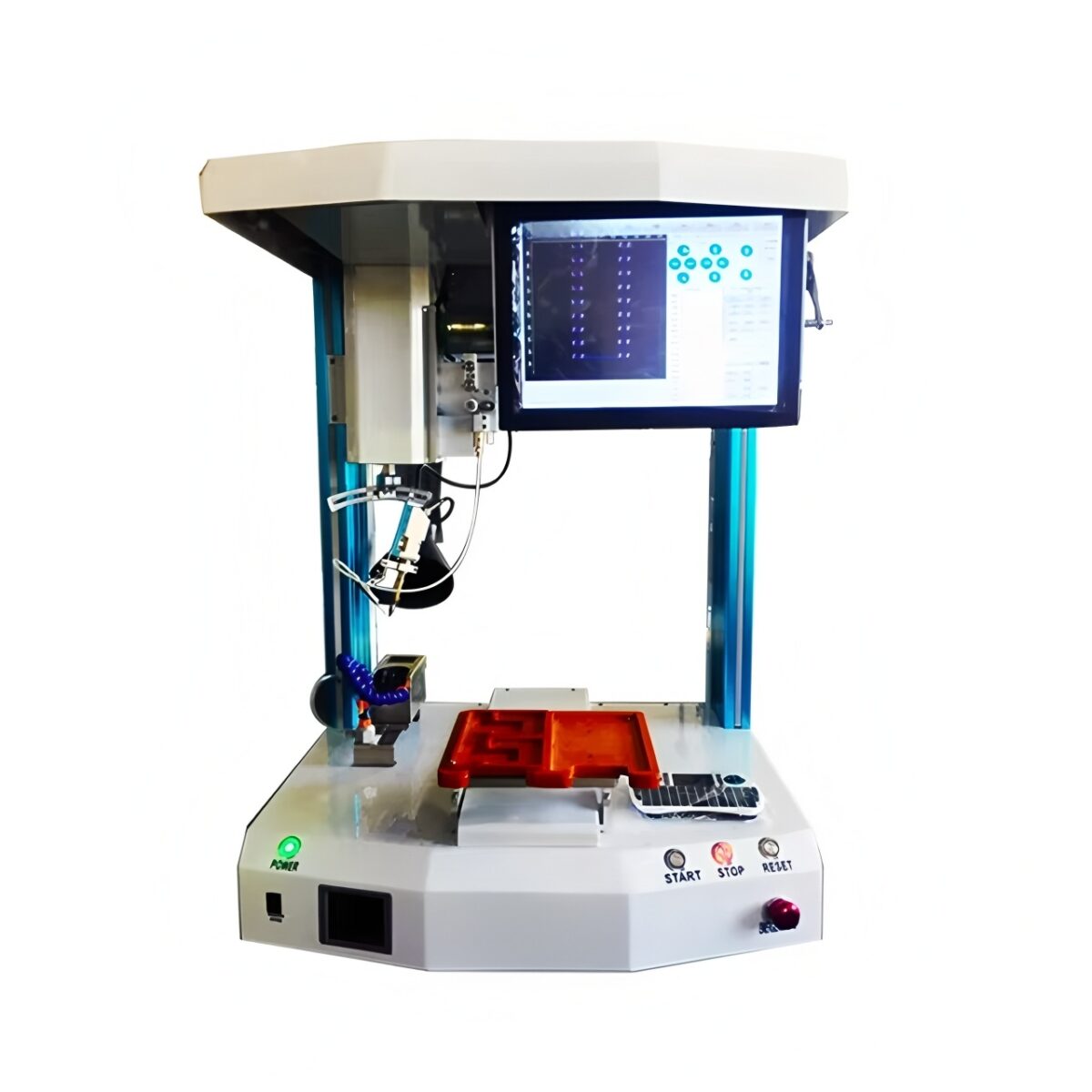

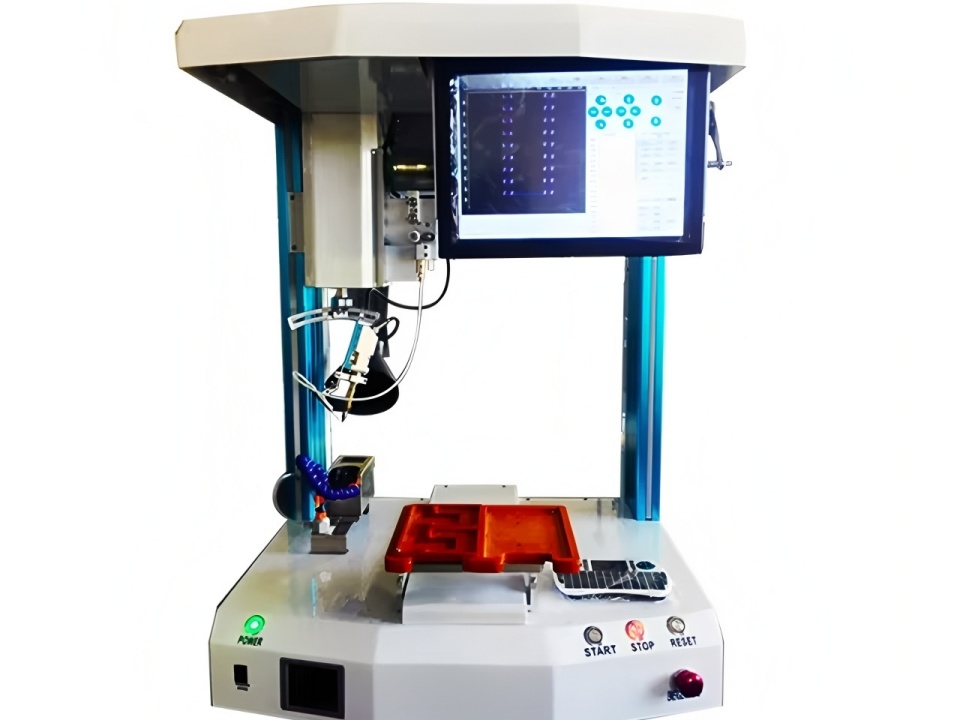

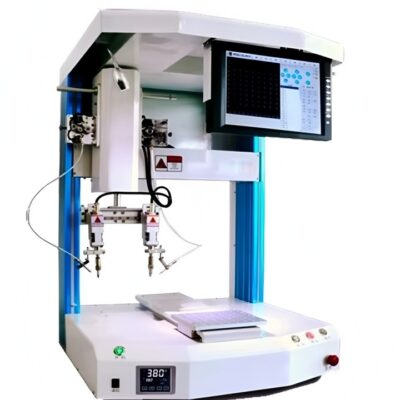

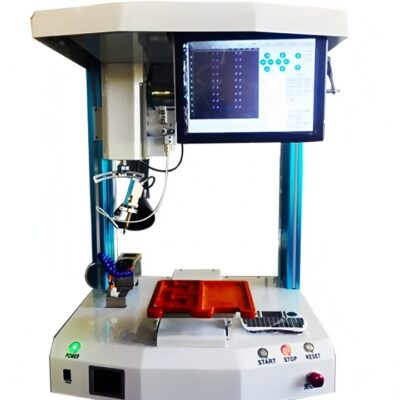

Precision Electronics Assembly Soldering Robot Supplier
We supply precision soldering robot systems for high-accuracy electronics assembly. Our automated solutions ensure consistent, repeatable results for tasks like SMT rework, through-hole pin soldering, and connector attachment, enhancing quality and throughput.
